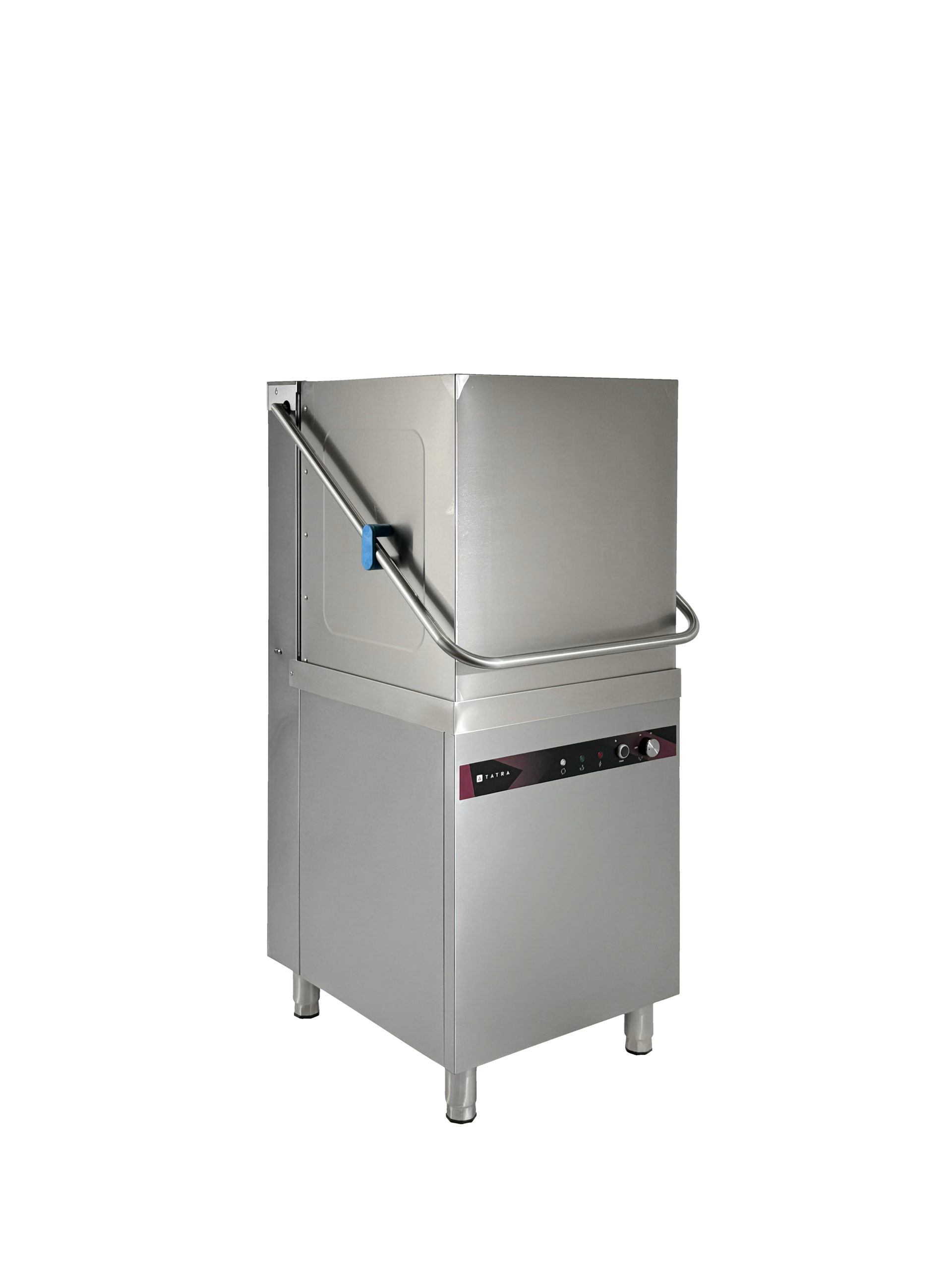

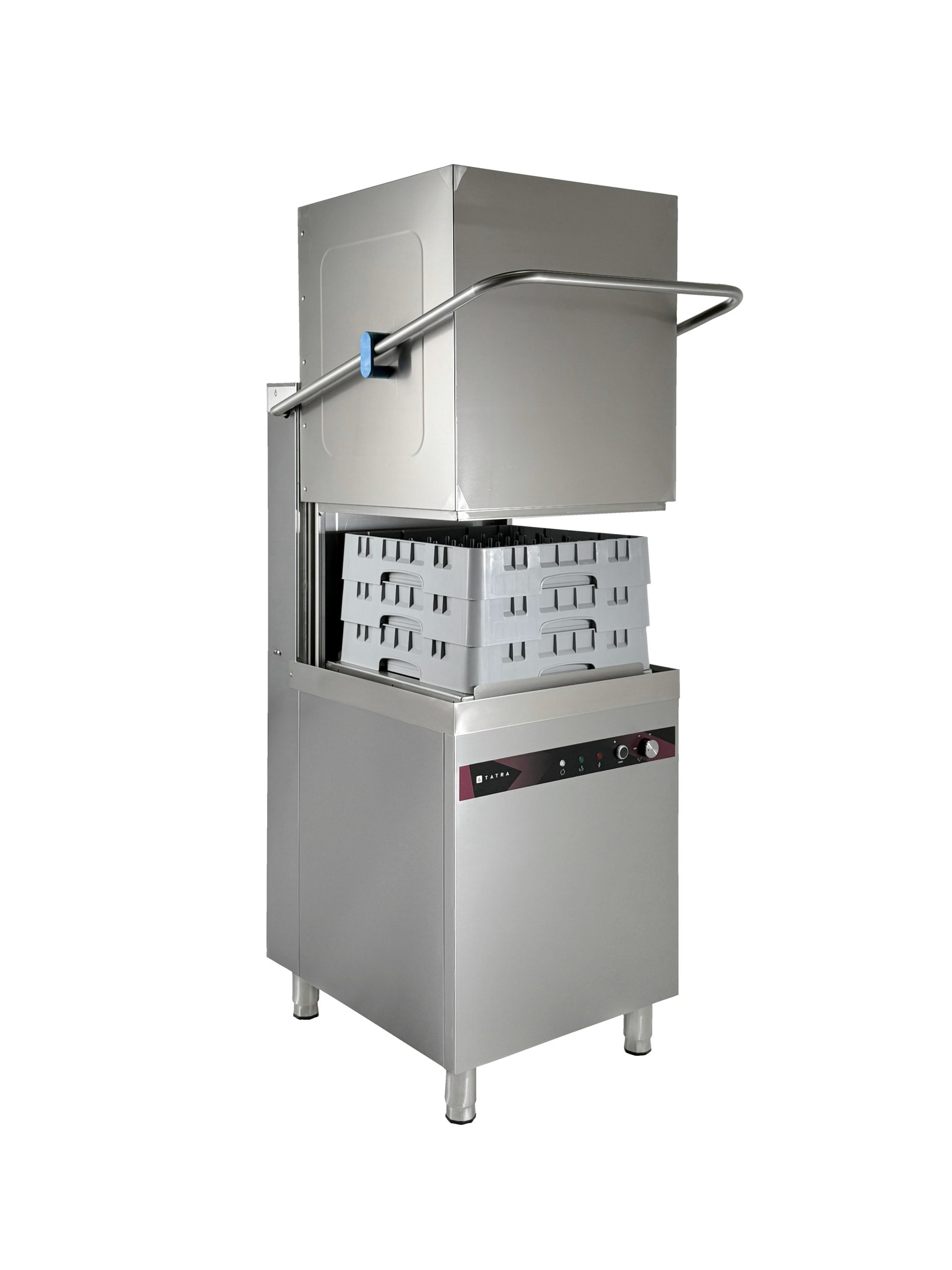

Tatra Hood Type Dishwasher Tw.H50+Dr+Dd

TATRA TW.H50+DR+DD is a hood-type dishwasher designed for public catering enterprises, dedicated to washing cups, glasses, plates, cutlery, and various kitchen utensils.
The TW.F50+DR machine has a capacity of up to 60 racks or 1080 plates per hour.

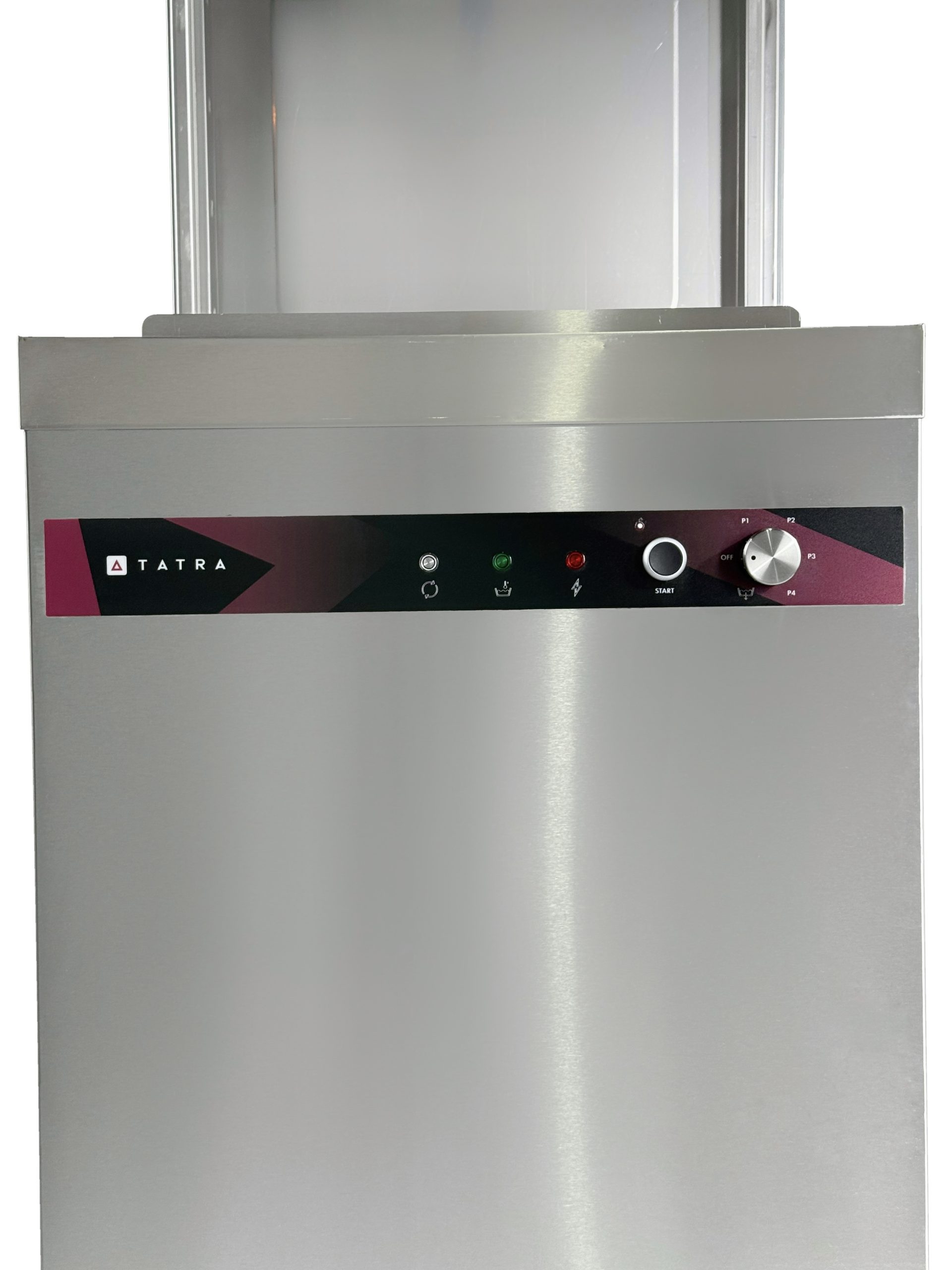

The model is equipped with an electromechanical control panel.
The Thermostop function regulates rinsing at a preset temperature in compliance with HACCP hygiene standards.
The maximum dish height is 380 mm
The body and tank are made of stainless steel. The double door, equipped with a convenient handle, prevents heat loss during operation.

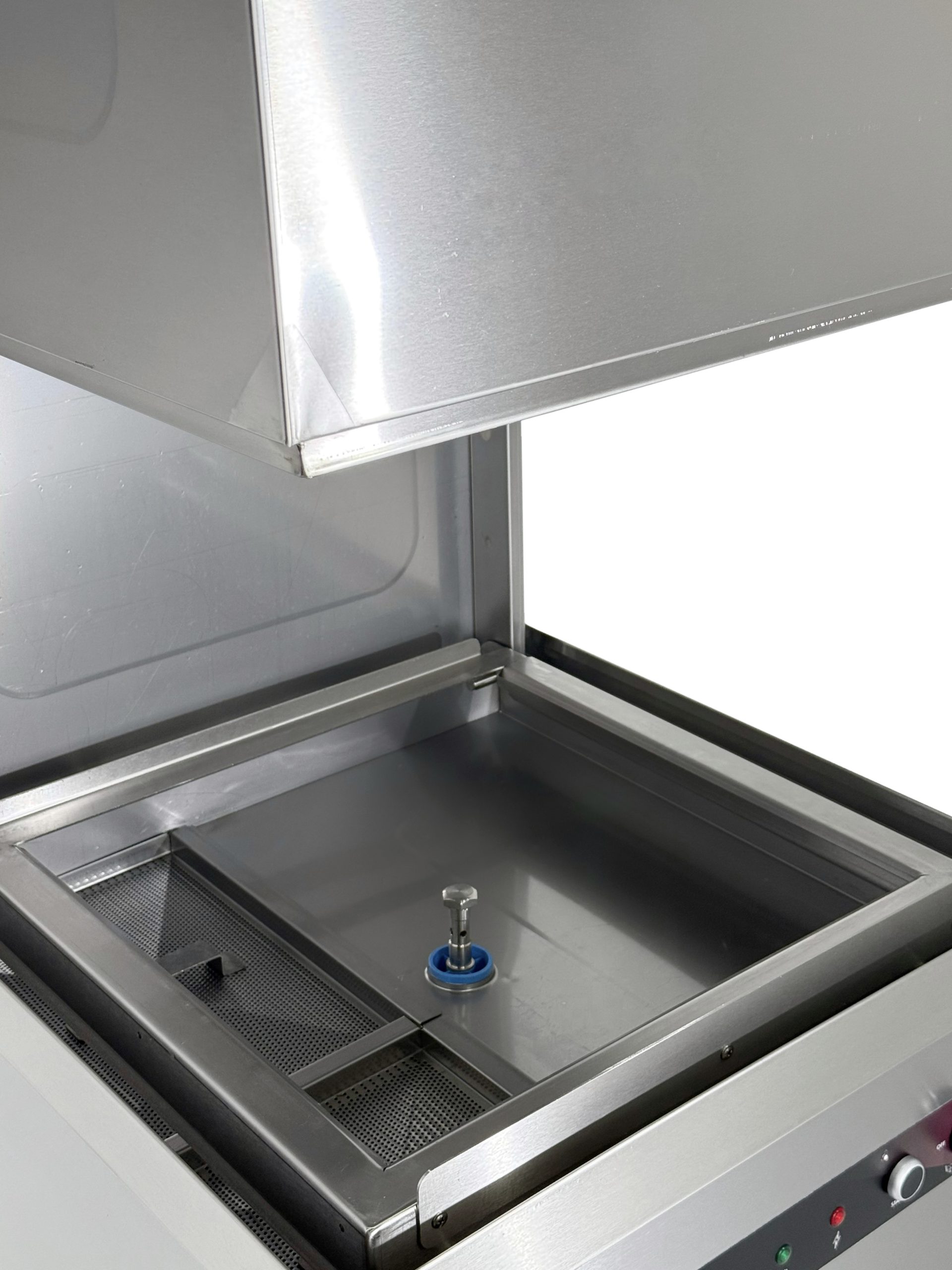

The tank filters are easily removable for cleaning, contributing to a longer equipment life.
Features:
— Rack size: 500х500 mm
— Detergent and rinse aid dispensers
— 4 modes: 60, 90, 120, and 180 seconds
— Tank volume: 45 liters
— Boiler volume: 7 liters
— Tank heating element: 4,5 kW
— Boiler heating element: 9 kW
— Wash temperature: 55С
— Rinse temperature: 85С
— Water consumption per cycle: 3 liters
— Inlet water temperature: +5…+55С
— Inlet water pressure: 2-4 bar
— Voltage: 400 V
— Power consumption: 9.7 kW
— Overall dimensions: 690x861x1460 (1910 mm when open) mm
Scope of delivery:

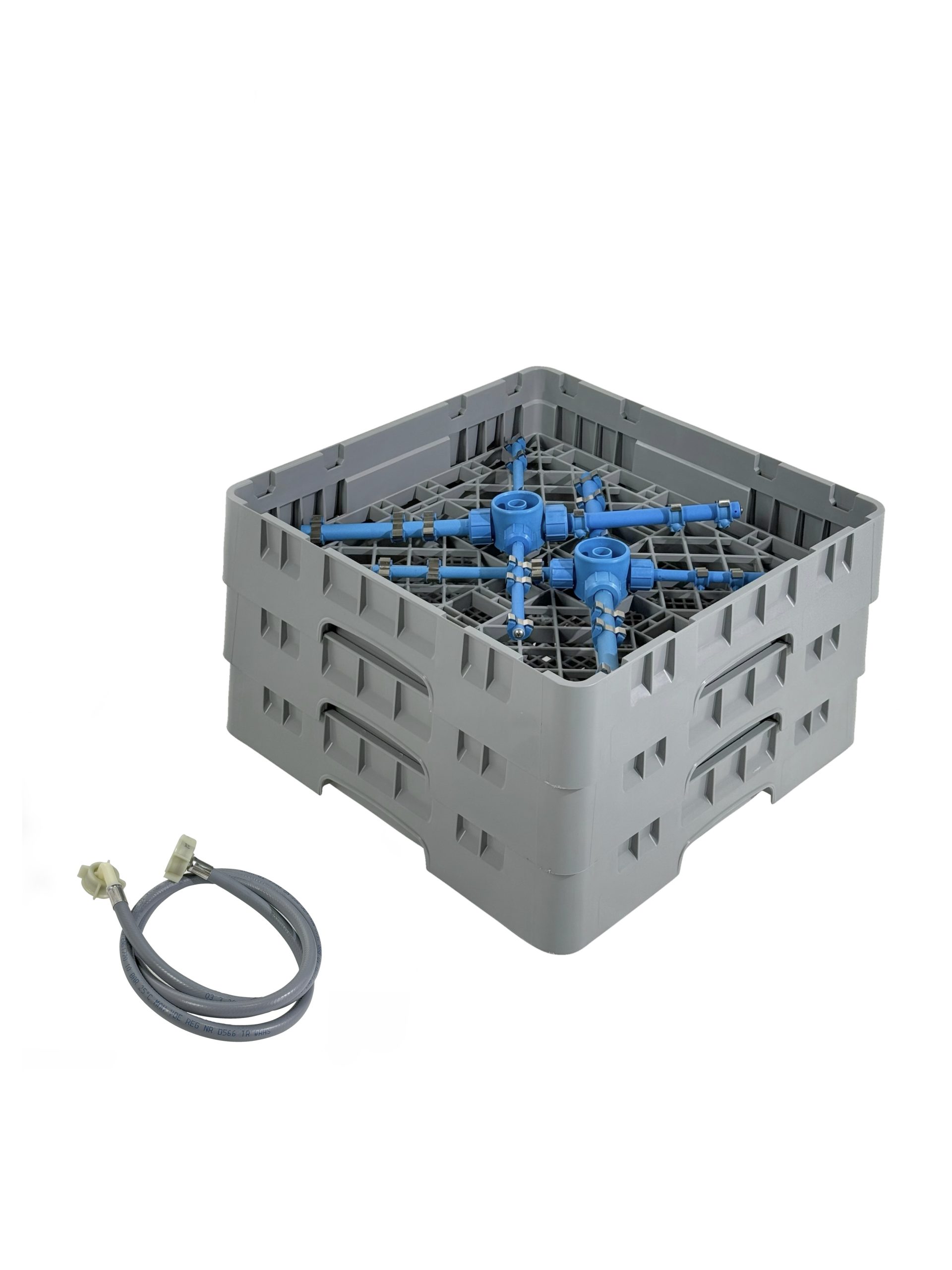

Plate rack, glass rack, cutlery insert, water connection hose, drain hose.
Height-adjustable feet are included.
